Honda 2001 Body Dimensional Drawings4-1
Under Body Measuring Dimensions4-6 		Previous Page Next Page


Under Body Measuring Dimensions4-6

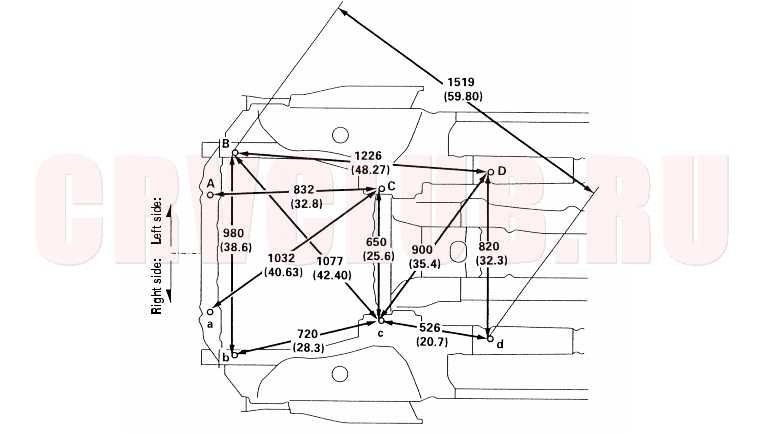

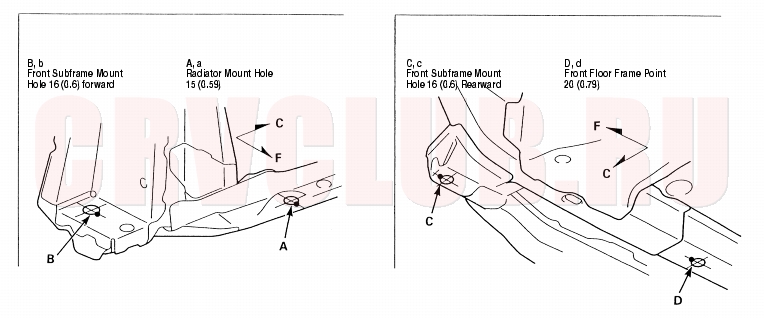

Engine Compartment and Front Floor Under View

Unit: mm (in.)



4-7

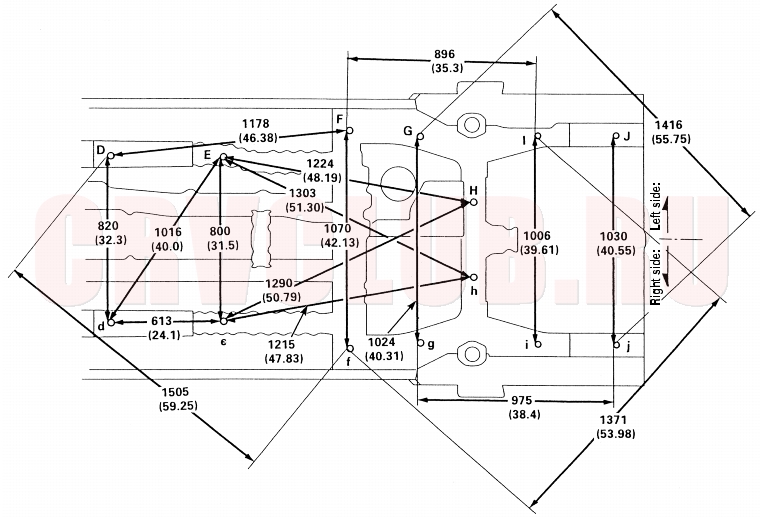

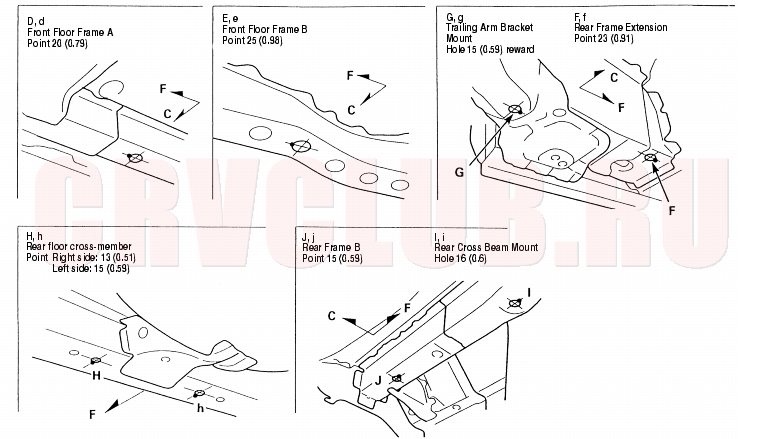

Middle and Rear Floor Under View

Unit: mm (in.)
