1. Raise the vehicle off the ground, and support it with safety stands in the proper location (see page 01-7) .

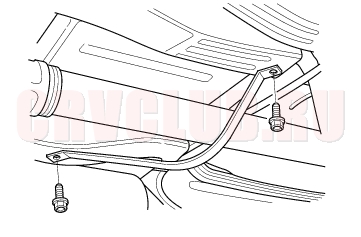

2. Remove the No. 2 propeller shaft protector.

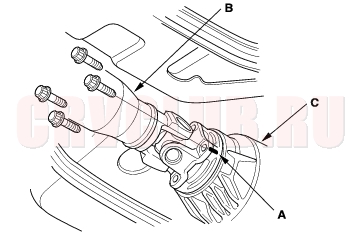

3. Make a reference mark (A) across the propeller shaft (B) and transfer companion flange (C).






4. Separate the propeller shaft from the transfer assembly.

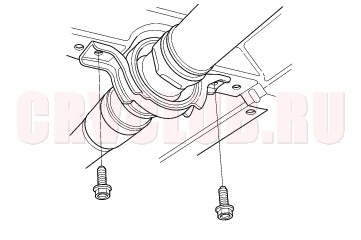

5. Remove the center support bearing mounting bolts.

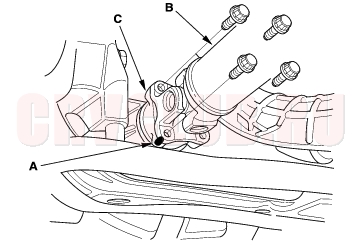

6. Make a reference mark (A) across the propeller shaft (B) and rear differential companion flange (C).






7. Separate the propeller shaft from the rear differential, then remove the propeller shaft.
