Body Electrical22A-1 Wire Harness and Ground Locations22A-14

Wire Harness and Ground Locations22A-14

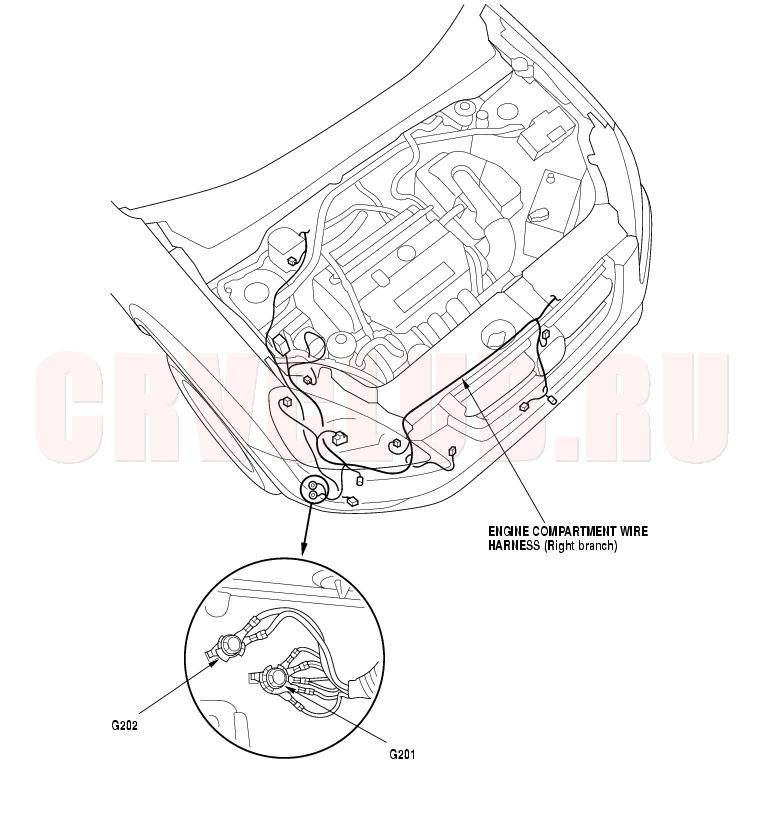

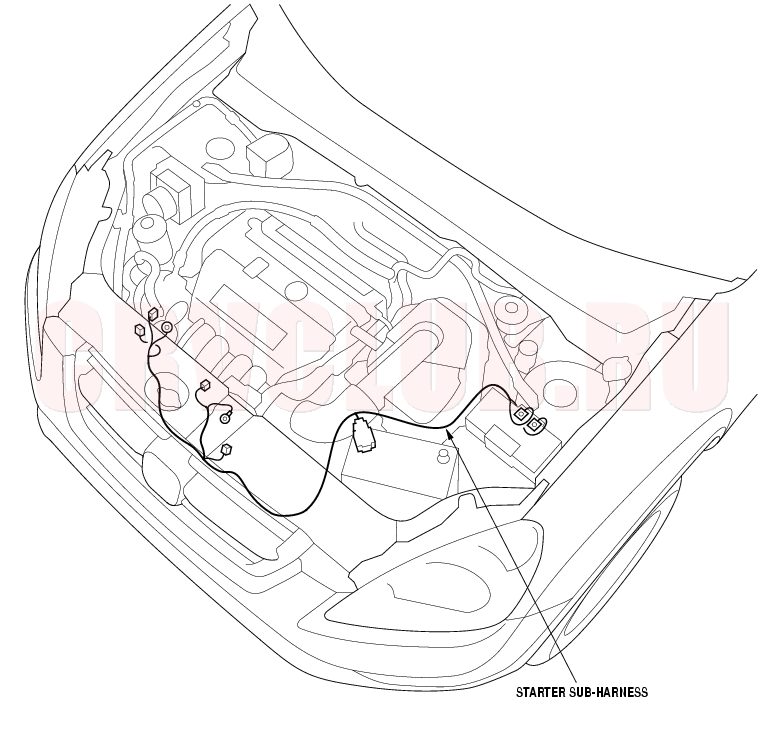

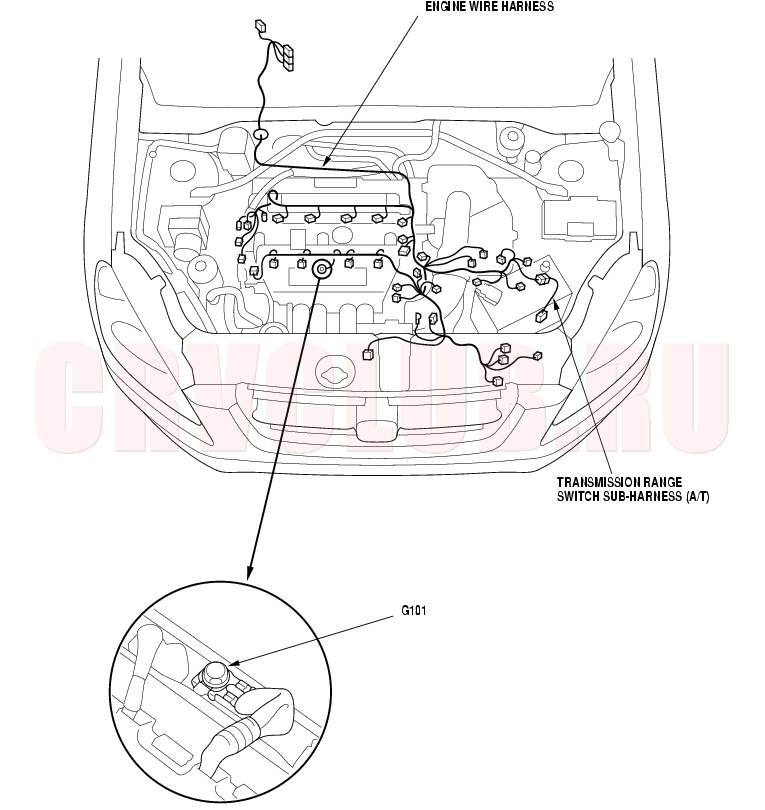

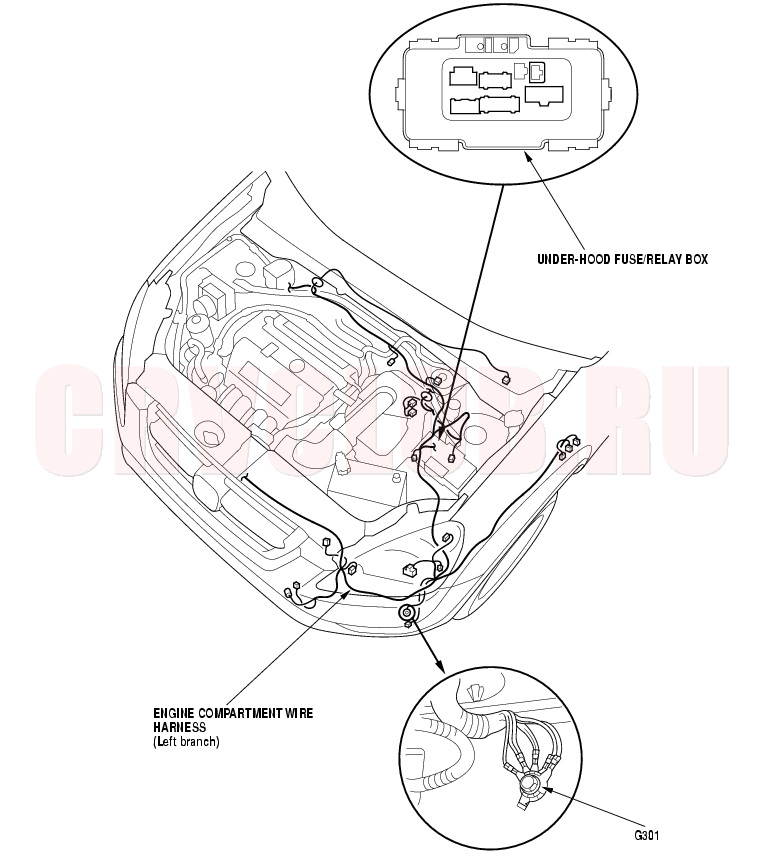

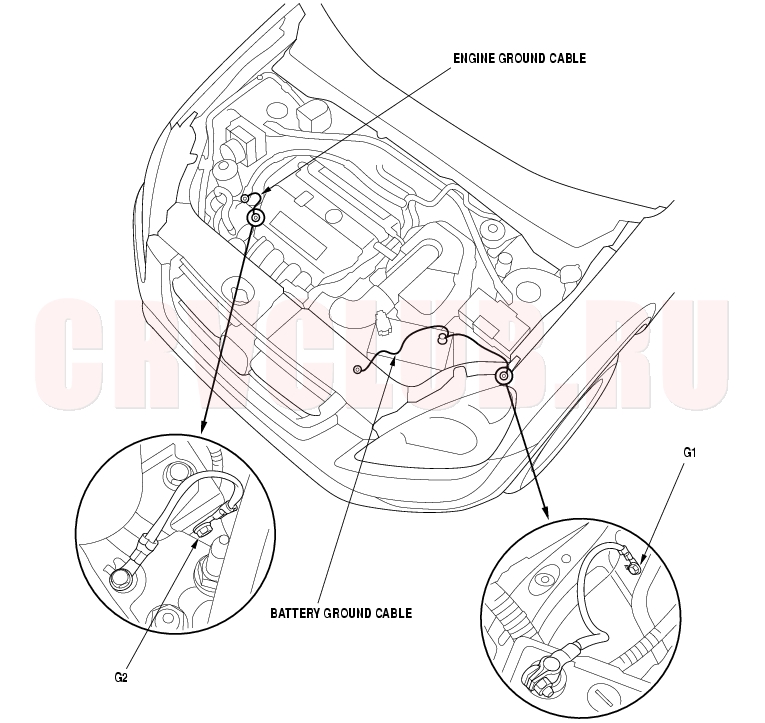

Engine Compartment

Note: LHD type is shown, RHD type is similar.

22A-15

Note: LHD type is shown, RHD type is similar.

Engine Compartment (cont'd)22A-16

Note: LHD type is shown, RHD type is similar.

22A-17

Note: LHD type is shown, RHD type is similar.

Engine Compartment (cont'd)22A-18

Note: LHD type is shown, RHD type is similar.

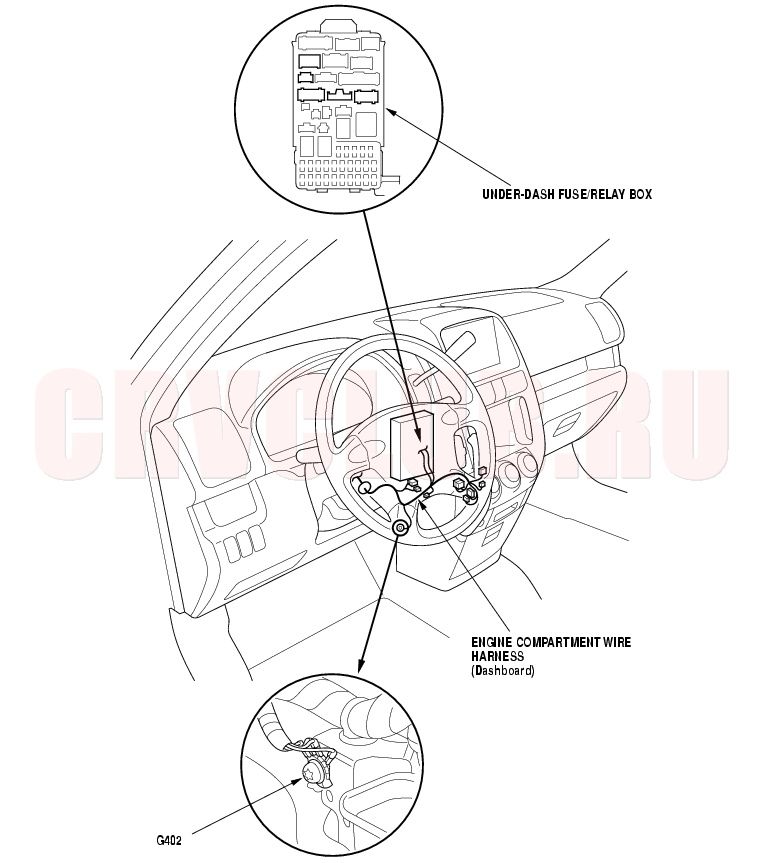

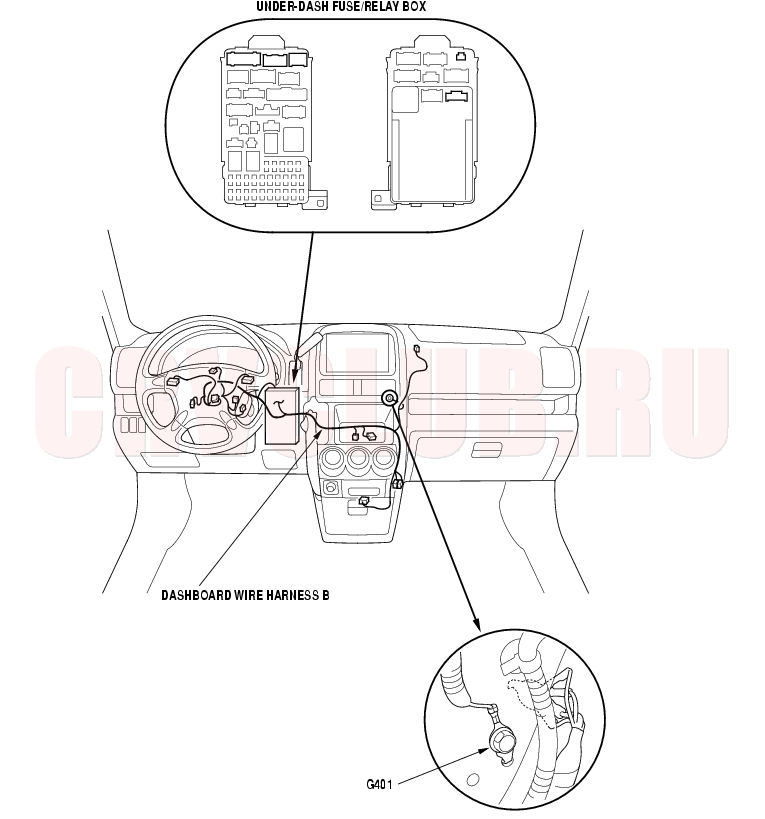

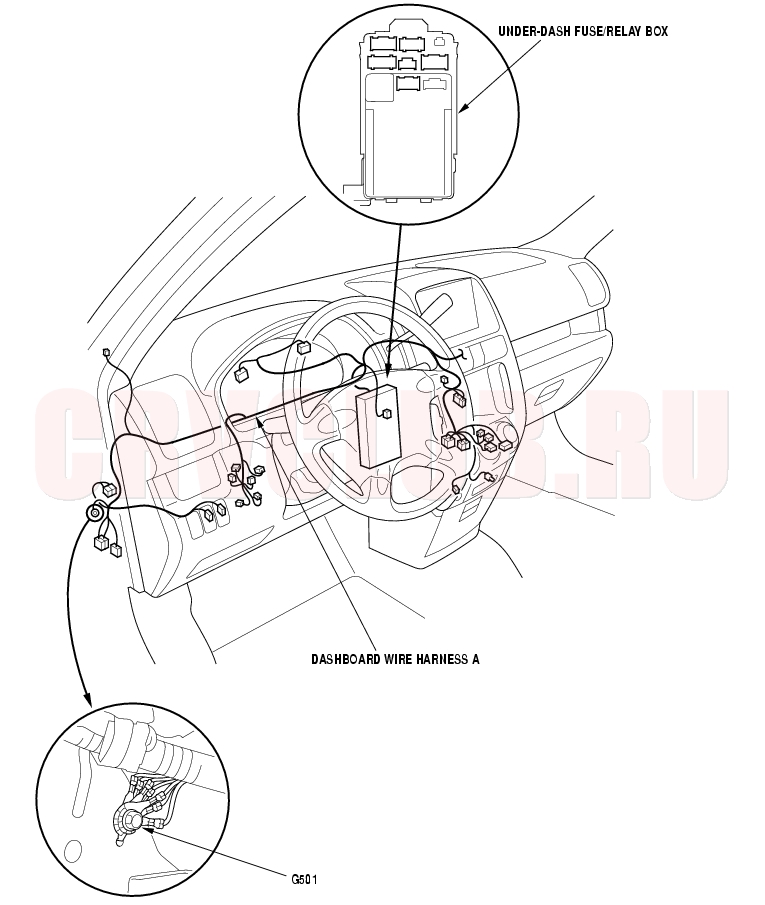

Dashoard22A-19

Note: LHD type is shown, RHD type is similar.

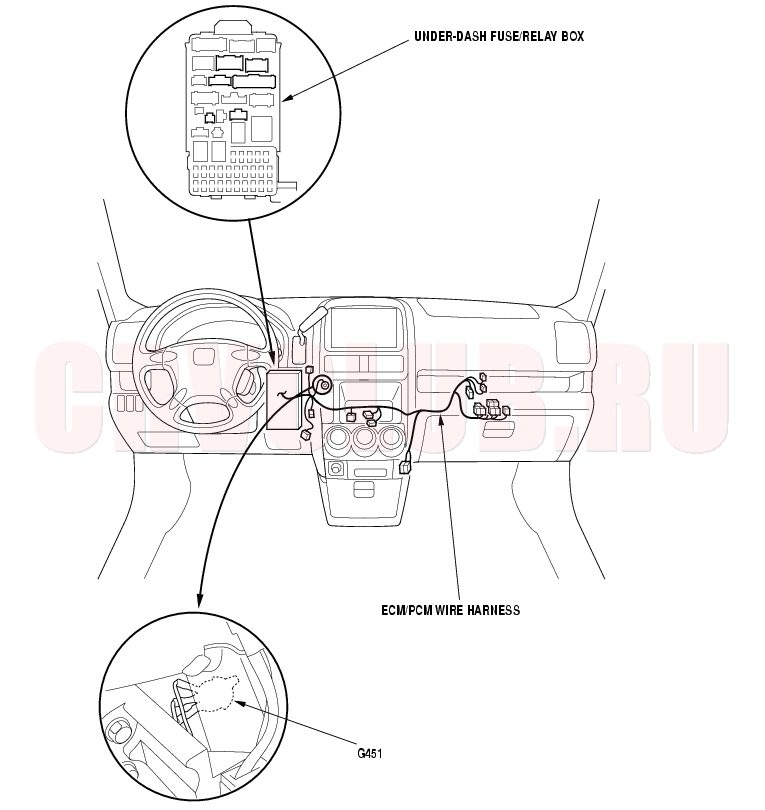

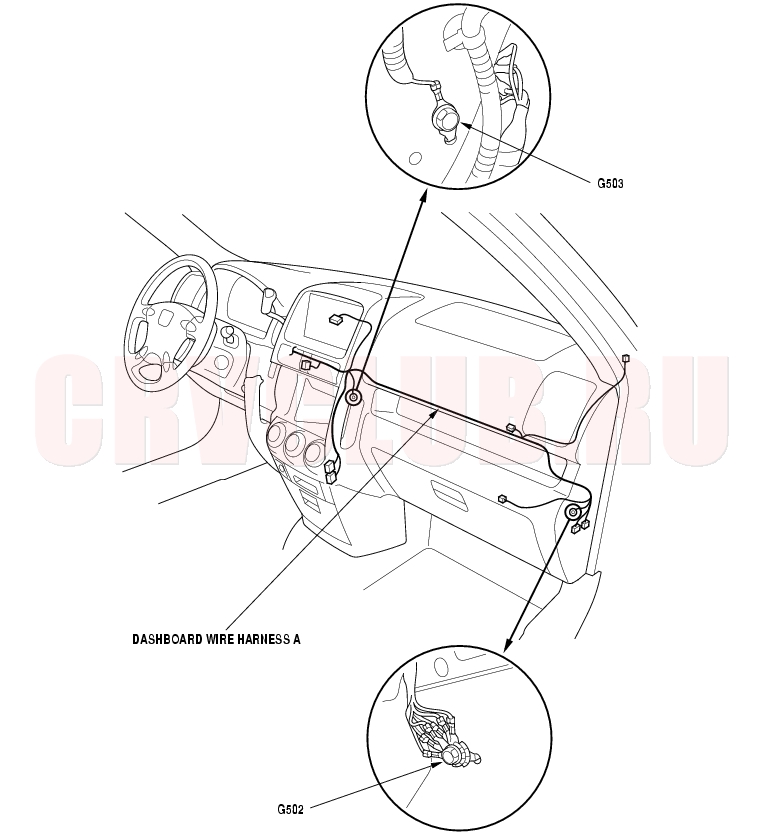

Dashboard (cont'd) 22A-20

Note: LHD type is shown, RHD type is similar.

22A-21

Note: LHD type is shown, RHD type is similar.

Dashboard (cont'd) 22A-22

Note: LHD type is shown, RHD type is similar.

22A-23

Note: LHD type is shown, RHD type is similar.

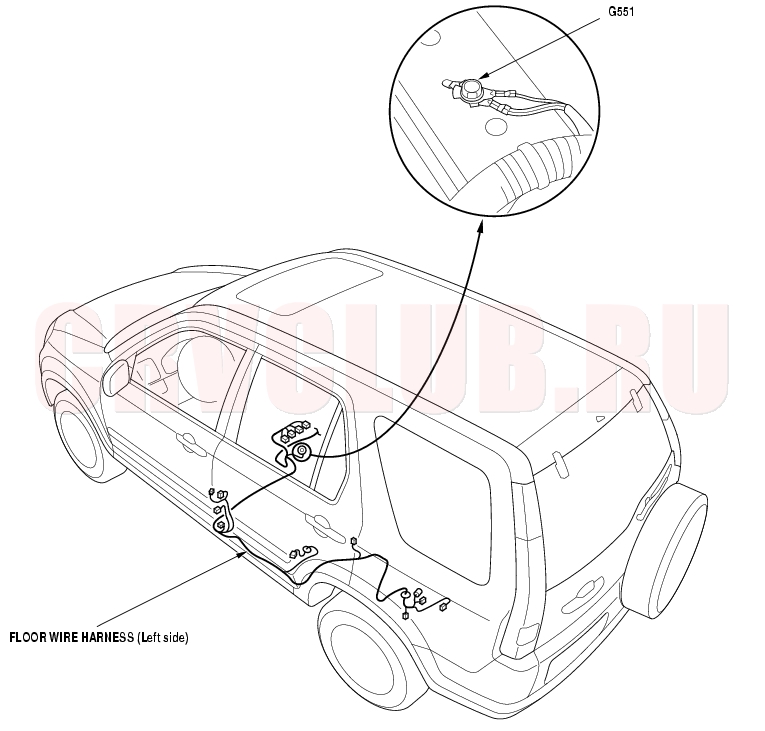

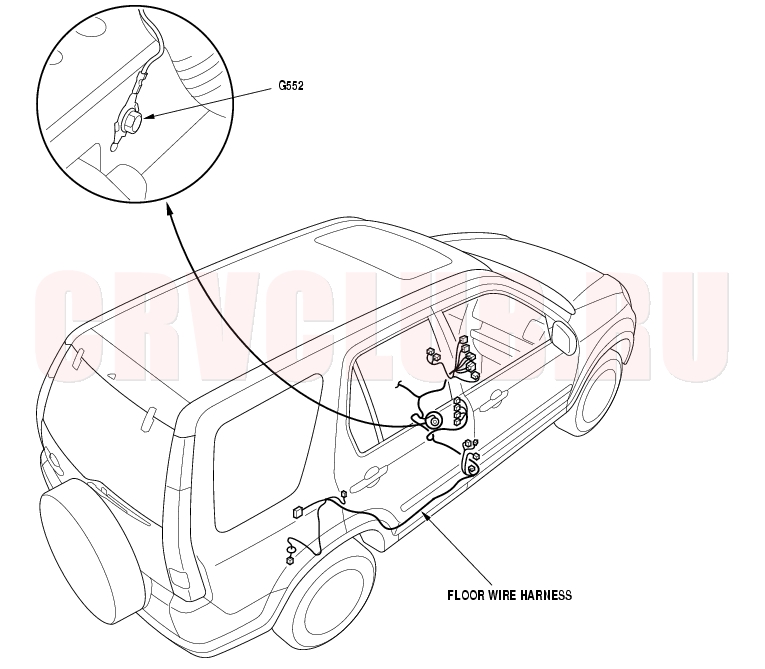

Floor 22A-24

Note: LHD type is shown, RHD type is similar.

22A-25

Note: LHD type is shown, RHD type is similar.

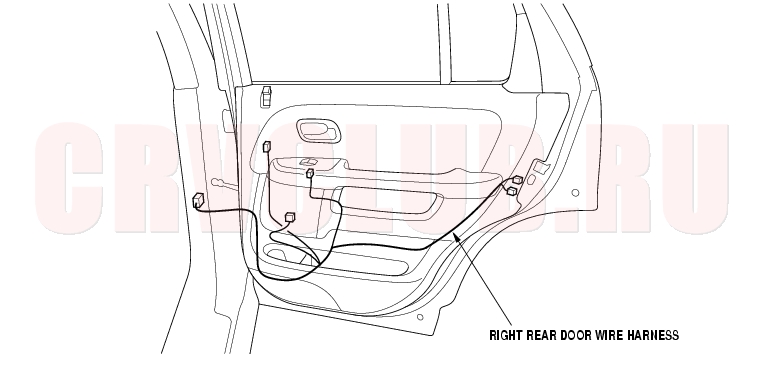

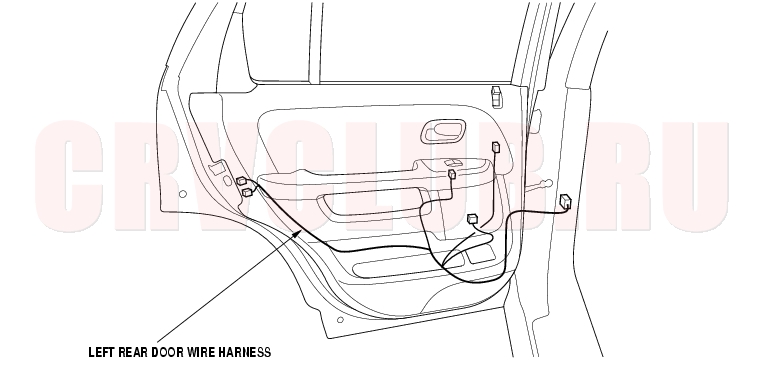

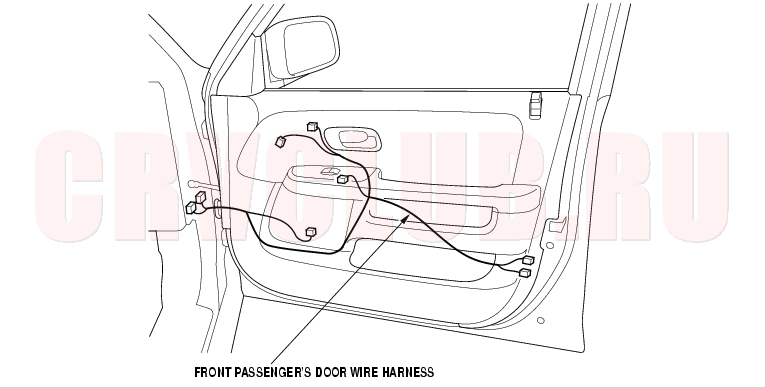

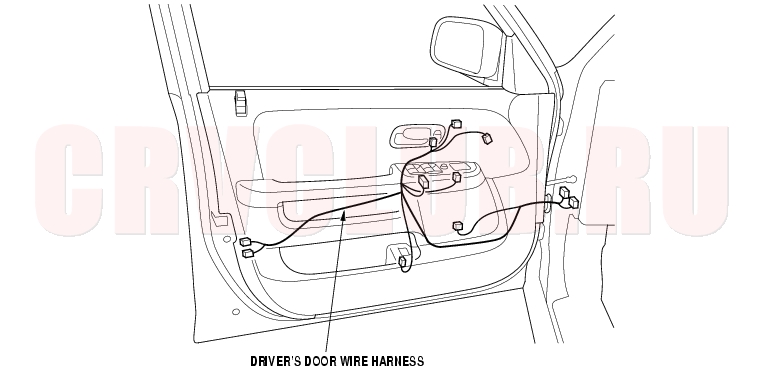

Door 22A-26

Note: LHD type is shown, RHD type is symmetrical.

22A-27

Note: LHD type is shown, RHD type is similar.

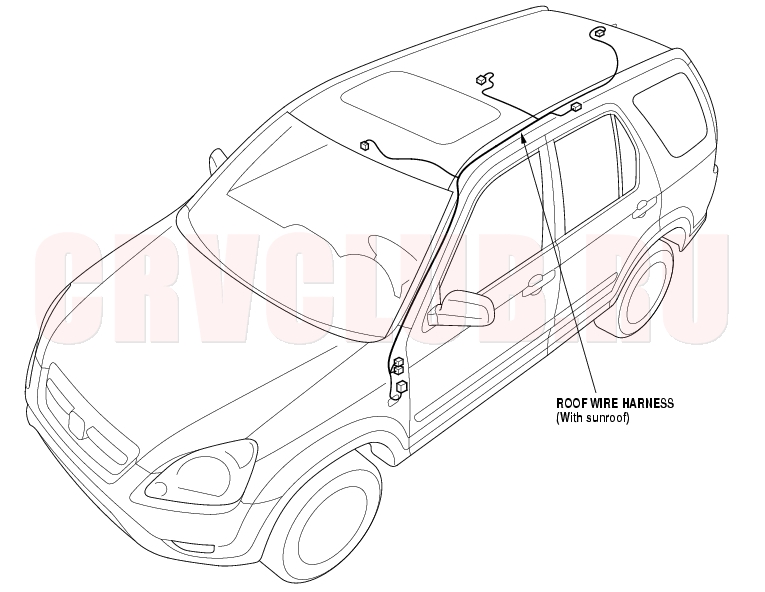

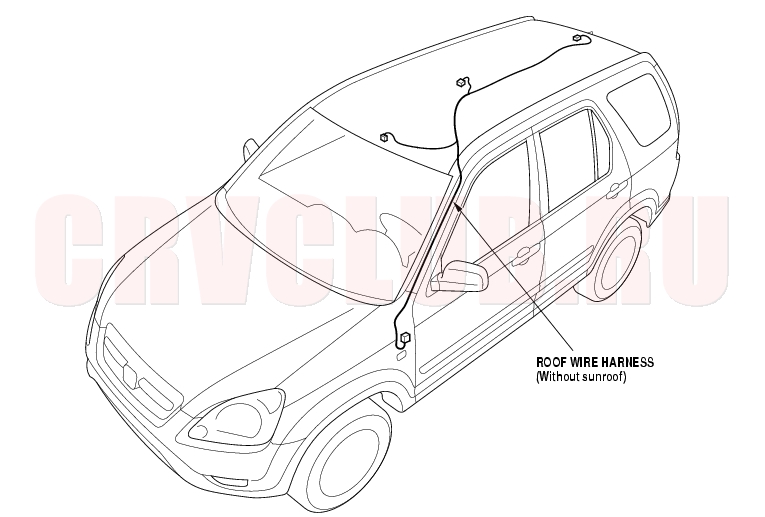

Roof 22A-28

Note: LHD type is shown, RHD type is similar.

22A-29

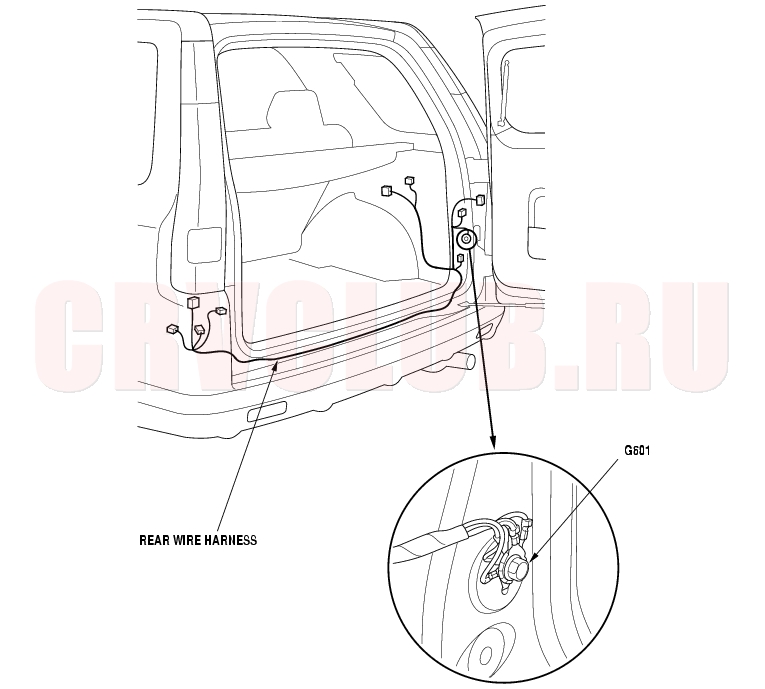

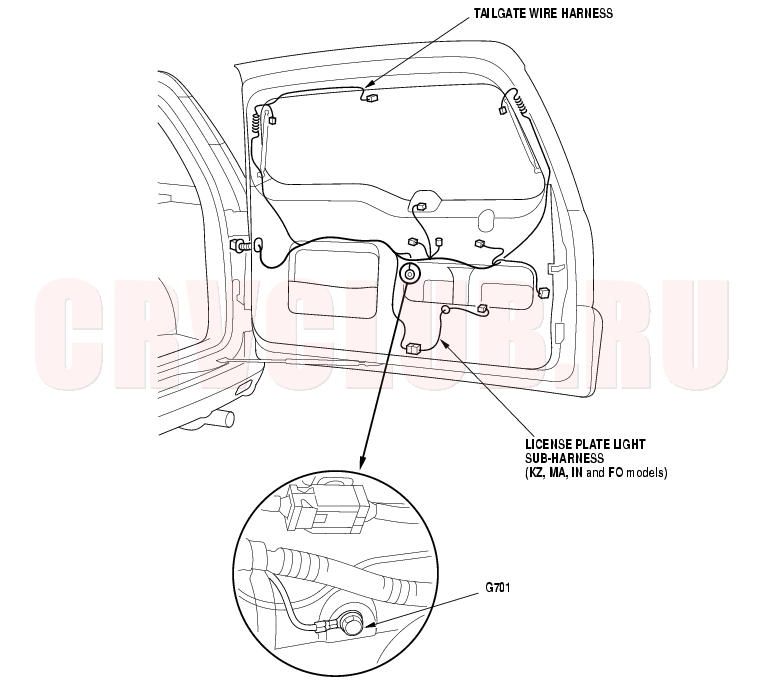

Rear/Tailgate 22A-30

Note: LHD type is shown, RHD type is similar.

22A-31

Note: LHD type is shown, RHD type is similar.

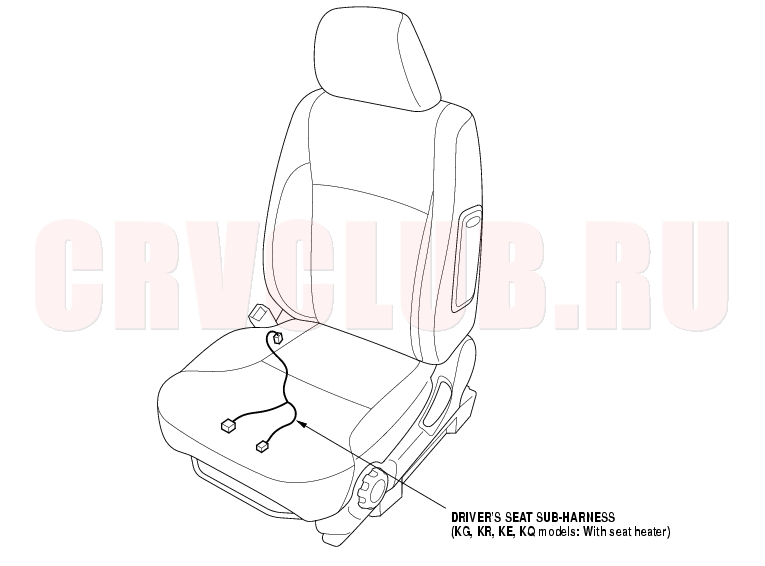

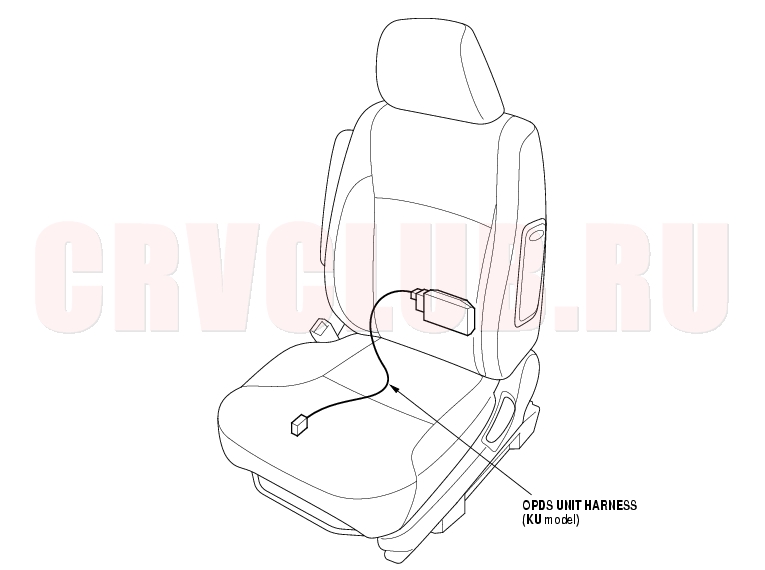

Seat 22A-32

Note: LHD type is shown, RHD type is similar.

22A-33

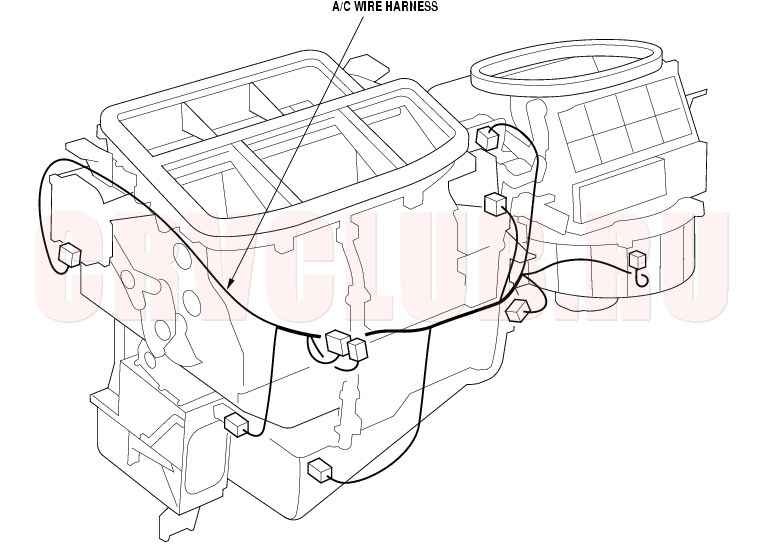

Blower 22A-34

Note: LHD type is shown, RHD type is symmetrical.

Body Electrical22A-1 Wire Harness and Ground Locations22A-14
