Under-hood Fuse/Relay Box

Body Electrical22A-1
Power Distribution 22A-37

Power Distribution 22A-37

Fuse to Component Index

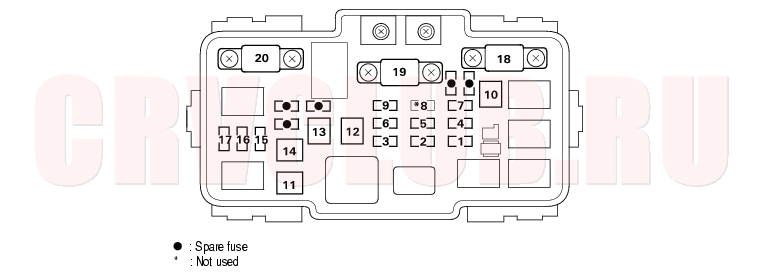

Under-hood Fuse/Relay Box

Fuse Number

Amps

Wire Color

Component(s) or Circuit(s) Protected

1 20A BLU/YEL Condenser fan motor

BLU/RED A/C compressor clutch

2 15A WHT/GRN Dash lights, Fog light switch, Front parking lights, Front side marker lights, Multiplex control unit (KG model: daytime running lights), License plate lights, Taillights, Taillight relay

3 15A WHT/BLU Ceiling lights,Ignition key light, Rear wiper control unit, Spotlights

4 20A BLU/BLK Radiator fan motor

5 15A WHT/BLK Hazard warning light, Security control unit, Turn signal/hazard relay

6 15A WHT/BLK CKP sensor, ECM/PCM, Fuel injectors, IAC valve, Immobilizer control unit-receiver, PGM-FI main relay 1 and 2, TDC sensor

7 15A WHT/GRN ABS modulator-control unit, Brake lights, Cruise control unit, ECM/PCM, Security horn relay, Security horn

BLU/RED Horn

8 ------ ------ Not used

9 10A WHT/RED AVN unit (With Navigation), Audio unit (Without Navigation), Data link connector, Gauge assembly, Immobilizer control unit-receiver, Keyless receiver unit, Multiplex control unit, Security control unit

10 30A WHT/RED ABS modulator-control unit (+B MR)

11 20A BLK/YEL Noise condenser, Rear window defogger

12 40A BLU/WHT Blower motor

13 40A WHT/BLK No. 7, 22, 23, 24, 25 fuses (in the under-dash fuse/relay box)

14 40A WHT/RED No. 2, 3, 5, 15, 16 fuses (in the under-dash fuse/relay box)

15 15A RED/YEL Headlight washer control unit, High beam indicator light, Left headlight

16 20A WHT Multiplex control unit

17 15A RED Right headlight

18 30A WHT/BLU ABS modulator-control unit (+B FSR)

19 100A ------ Battery, Power distribution

20 50A WHT Ignition switch (BAT)

Fuse to Component Index (cont'd) 22A-38

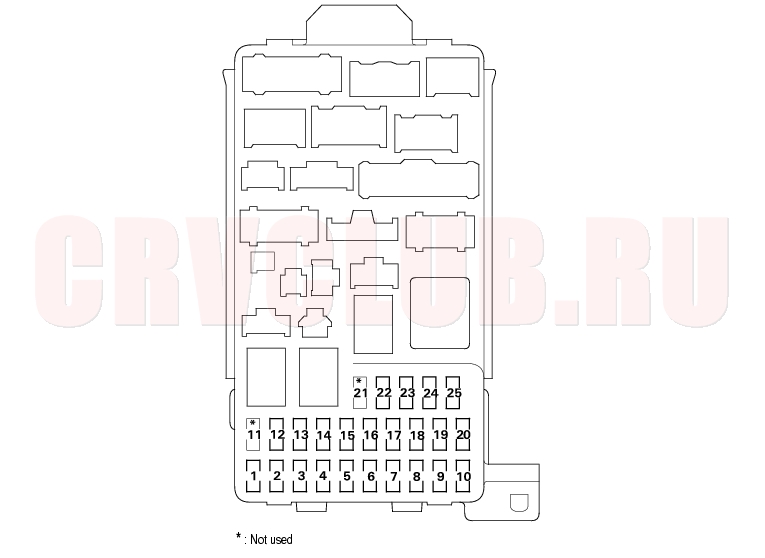

Under-dash Fuse/Relay Box

Fuse Number

Amps

Wire Color

Component(s) or Circuit(s) Protected

1 15A BLK/WHT Ignition coils

2 10A GRN/WHT Rear accessory power socket

3 10A Fuse/relay box socket Multiplex control unit (KG model: daytime running lights)

20A BLU/RED Front fog lights

4 10A GRN/YEL Alternator, Camshaft position (CMP) sensor, Cruise main switch, Cruise control unit, ELD unit, EVAP canister purge valve, Intake manifold runner control (IMRC) solenoid valve, Primary HO2S, Secondary HO2S, Vehicle speed sensor

5 7.5A Fuse/relay box socket Multiplex control unit (With rear fog light)

6 7.5A YEL/GRN Headlight adjuster switch, Headlight adjuster unit, Power window control unit, Power window relay, Sunroof open relay, Sunroof close relay

7 20A GRN Sunroof motor

8 7.5A Fuse/relay box socket Option connector, Multiplex control unit

YEL/RED AVN unit (With Navigation), Audio unit (Without Navigation), Interlock control unit (KG model: daytime running lights), Key interlock solenoid, Key interlock relay, Shift lock solenoid

9 7.5A RED/GRN OPDS unit (With side airbag), Rear wiper control unit, Rear wiper motor, Rear window washer motor

10 7.5A Fuse/relay box socket Multiplex control unit

YEL ABS modulator-control unit, A/T reverse relay, Back-up lights, Gauge assembly, Keyless receiver unit, Security control unit, Shift lock relay

11 ------ ------ Not used

12 7.5A Fuse/relay box socket Multiplex control unit (KG model: daytime running lights)

13 10A PNK SRS unit(VB)

14 10A Fuse/relay box socket Option connector

BLK/YEL A/C compressor clutch relay, Blower motor relay, Condenser fan relay, Climate control unit (With auto A/C), Heater control panel (Without auto A/C), In-car temperature sensor assembly (LHD type with auto A/C), Power mirror actuator, Power mirror defogger, Radiator fan relay, Rear window defogger relay, Recirculation control motor

15 30A RED/YEL Headlight washer motor

16 20A RED/BLK Seat heaters

17 15A BLK/YEL ECM/PCM, Fuel pump, Inertia switch (KG, KR and KE models), SRS unit (VA)

18 15A YEL/GRN Cigarette lighter, Rear accessory power socket relay

19 7.5A YEL/BLK Turn signal/hazard relay

20 20A Fuse/relay box socket Multiplex control unit

GRN/BLK Windshield wiper motor, Windshield washer motor

21 ------ ------ Not used

22 20A GRN/BLK Front passenger's power window motor

23 20A GRN/WHT Driver's power window motor

24 20A YEL/RED Left rear power window motor

25 20A YEL/BLU Right rear power window motor

22A-39

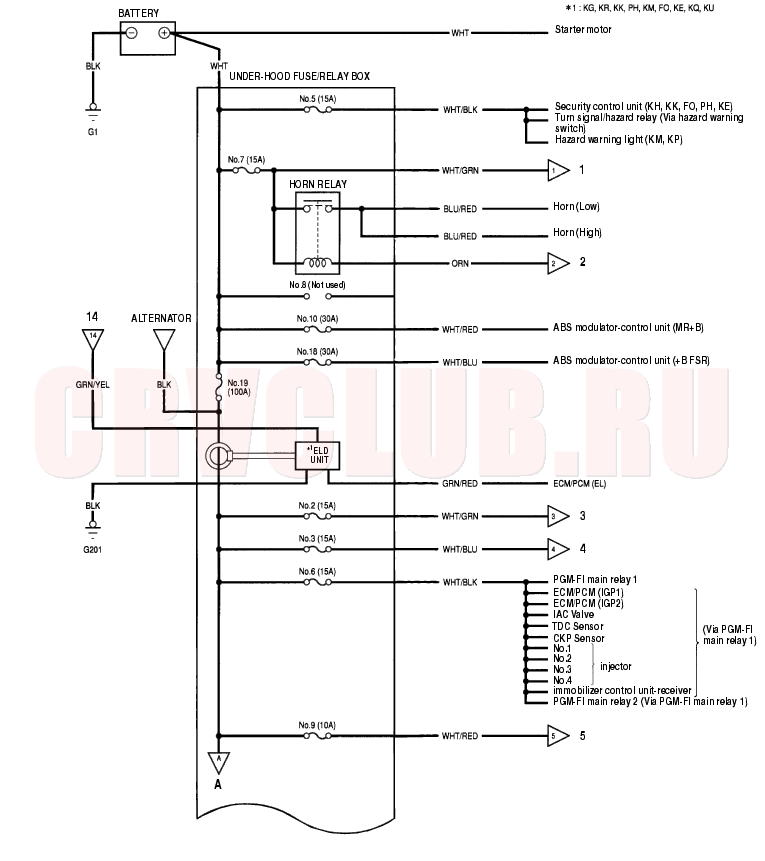

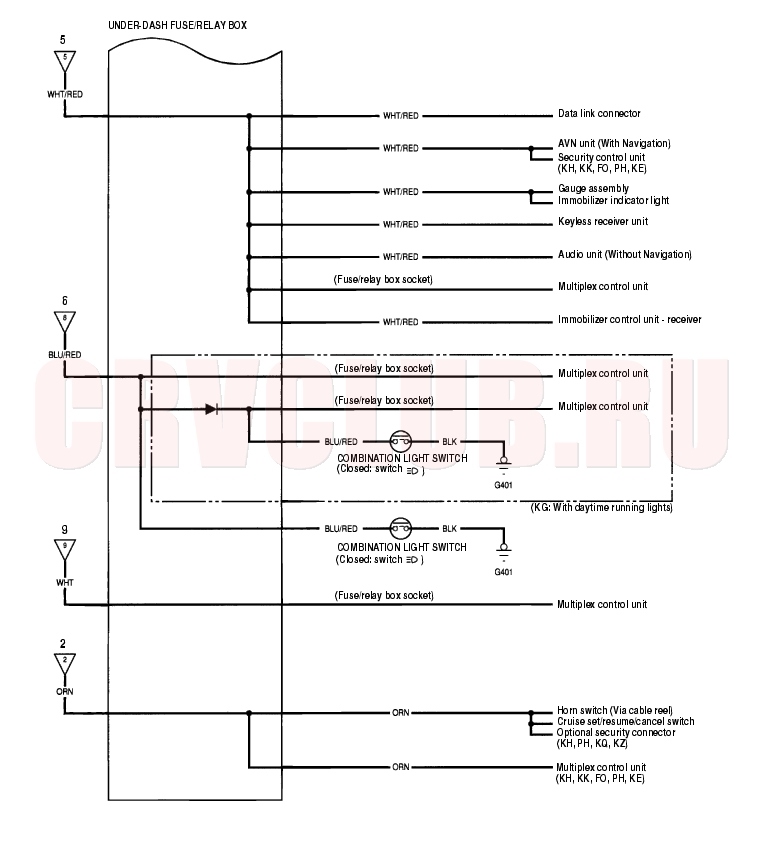

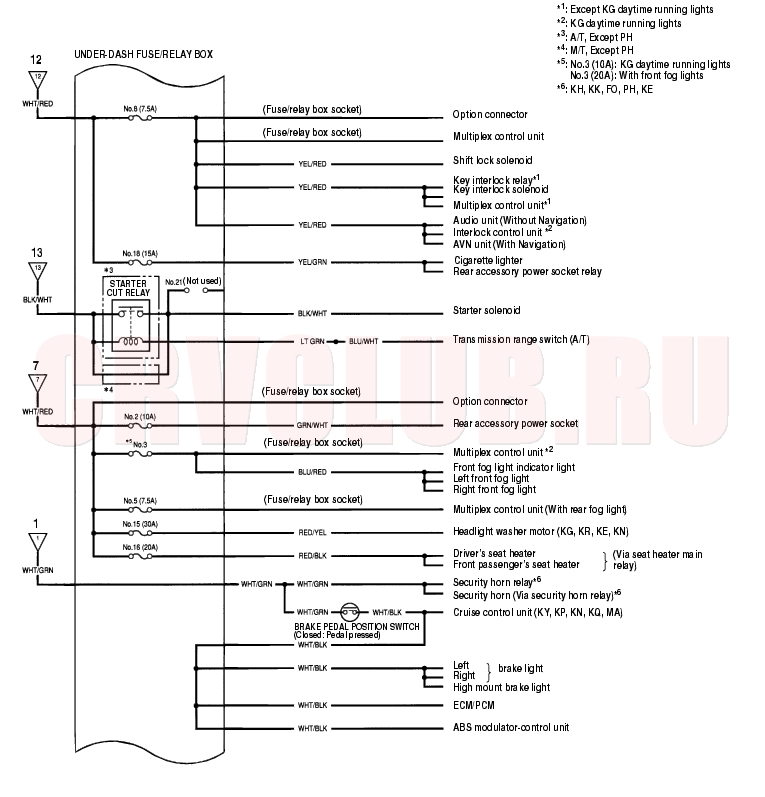

Circuit Identification 22A-40

1

UNDER-DASH FUSE/RELAY BOX
To page 22A-47

2

UNDER-DASH FUSE/RELAY BOX
To page 22A-49

3

UNDER-DASH FUSE/RELAY BOX
To page 22A-48

4

UNDER-DASH FUSE/RELAY BOX
To page 22A-50

5

UNDER-DASH FUSE/RELAY BOX
To page 22A-49

14

No.4 (10A) UNDER-DASH FUSE/RELAY BOX
From page 22A-45

A
To page 22A-43

Circuit Identification (cont'd) 22A-41

6

UNDER-DASH FUSE/RELAY BOX
To page 22A-46

7

UNDER-DASH FUSE/RELAY BOX
To page 22A-47

8

UNDER-DASH FUSE/RELAY BOX
To page 22A-49

11

No.14 (10A) UNDER-DASH FUSE/RELAY BOX
From page 22A-45

B+C+D
To page 22A-44

A

From page 22A-42

Circuit Identification (cont'd) 22A-42

9

UNDER-DASH FUSE/RELAY BOX
To page 22A-49

10

UNDER-DASH FUSE/RELAY BOX
To page 22A-45

B+C+D
From page 22A-43

Circuit Identification (cont'd) 22A-43

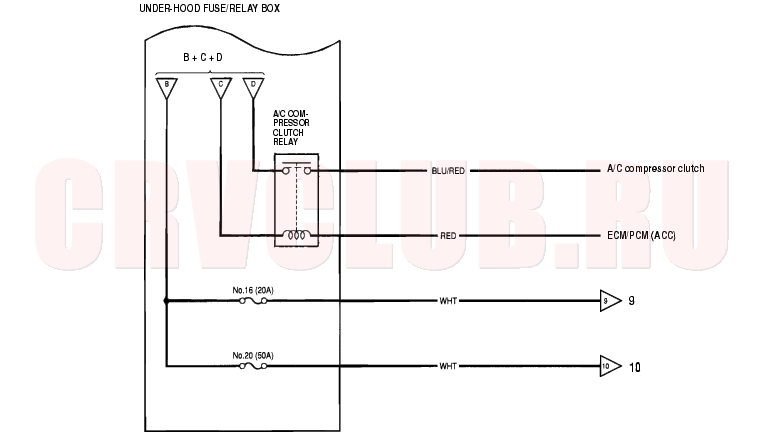

10

No. 20 (50A) UNDER-HOOD FUSE/RELAY BOX
From page 22A-44

11

UNDER-HOOD FUSE/RELAY BOX
To page 22A-43

12 + 13

UNDER-DASH FUSE/RELAY BOX
To page 22A-47

14

ELD UNIT
To page 22A-42

A + B

To page 22A-46

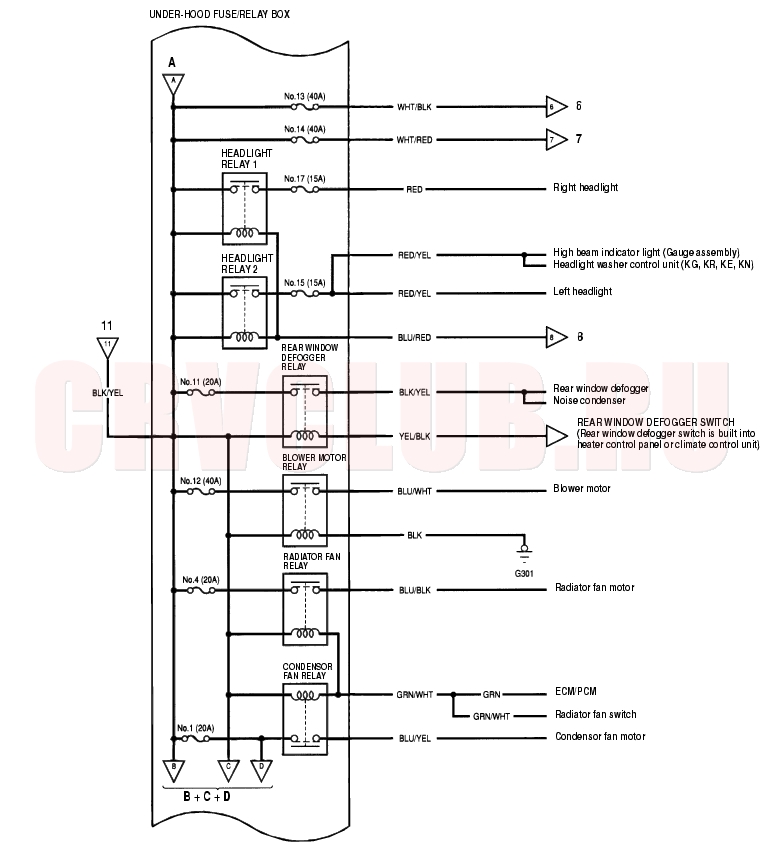

Circuit Identification (cont'd) 22A-44

6

No.13 (40A) UNDER-HOOD FUSE/RELAY BOX
From page 22A-43

A + B

From page 22A-45

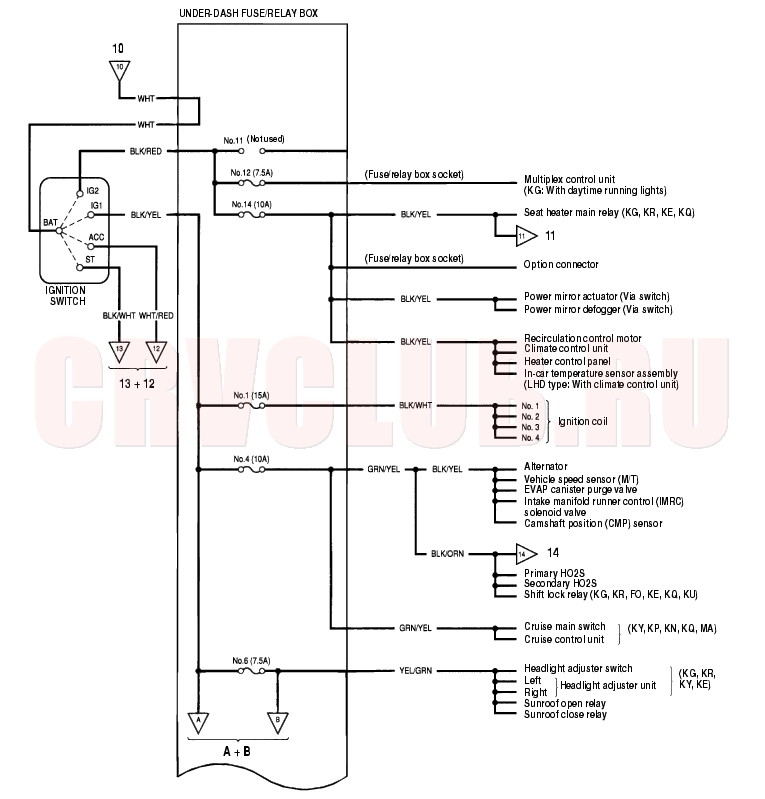

Circuit Identification (cont'd) 22A-45

12

IGNITION SWITCH (ACC)
From page 22A-45

7

No.14 (40A) UNDER-HOOD FUSE/RELAY BOX
From page 22A-43

13

IGNITION SWITCH (ST)
From page 22A-45

1

No. 7 (15A) UNDER-HOOD FUSE/RELAY BOX
From page 22A-42

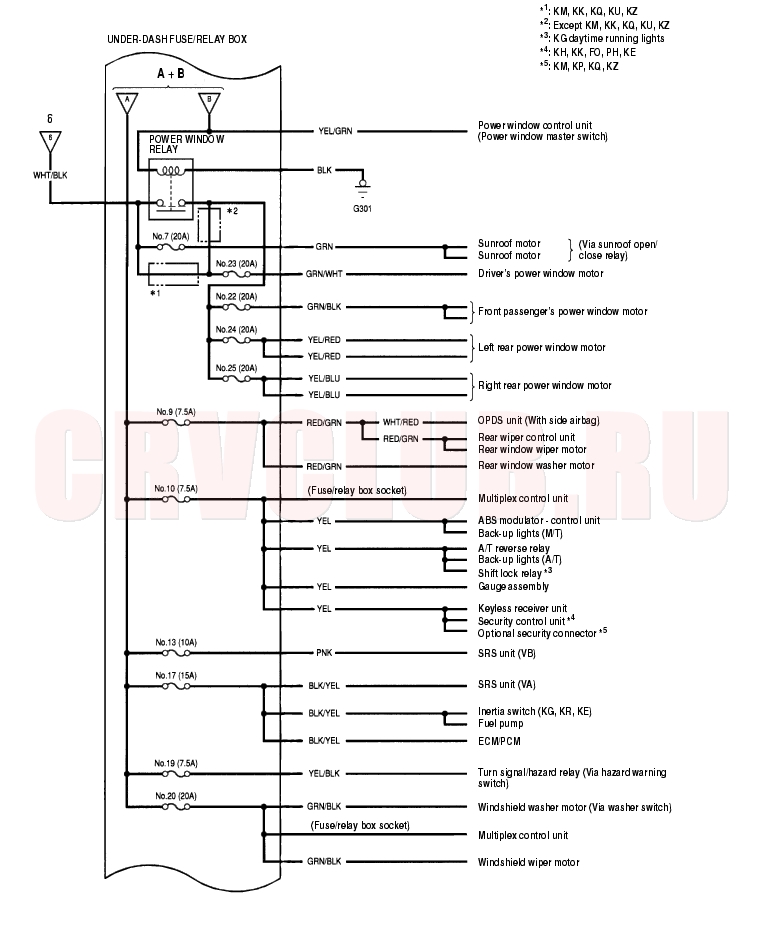

Circuit Identification (cont'd) 22A-46

3

No.2 (15A) UNDER-HOOD FUSE/RELAY BOX
From page 22A-42

4

No.3 (15A) UNDER-HOOD FUSE/RELAY BOX
From page 22A-42

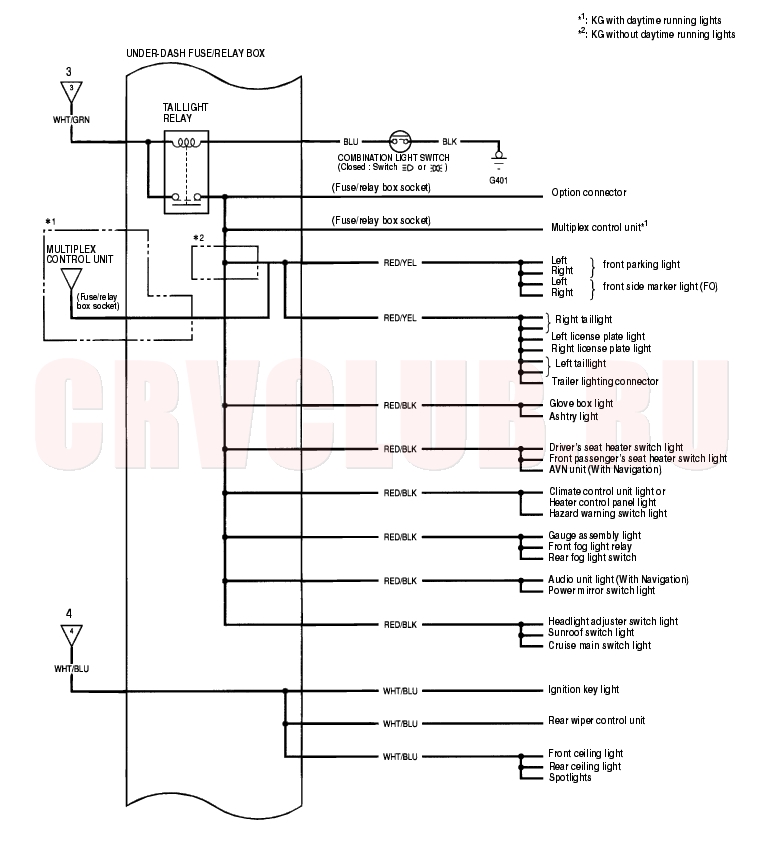

Circuit Identification (cont'd) 22A-47

5

No.9 (10A) UNDER-HOOD FUSE/RELAY BOX
From page 22A-42

6

HEADLIGHT RELAY 1, 2
From page 22A-43

9

No. 16 (20A) UNDER-HOOD FUSE/RELAY BOX
From page 22A-44

2

HORN RELAY
From page 22A-42

***Under-hood Fuse/Relay Box***
Fuse Number	Amps	Wire Color	Component(s) or Circuit(s) Protected
1	20A	BLU/YEL	Condenser fan motor
BLU/RED	A/C compressor clutch
2	15A	WHT/GRN	Dash lights, Fog light switch, Front parking lights, Front side marker lights, Multiplex control unit (KG model: daytime running lights), License plate lights, Taillights, Taillight relay
3	15A	WHT/BLU	Ceiling lights,Ignition key light, Rear wiper control unit, Spotlights
4	20A	BLU/BLK	Radiator fan motor
5	15A	WHT/BLK	Hazard warning light, Security control unit, Turn signal/hazard relay
6	15A	WHT/BLK	CKP sensor, ECM/PCM, Fuel injectors, IAC valve, Immobilizer control unit-receiver, PGM-FI main relay 1 and 2, TDC sensor
7	15A	WHT/GRN	ABS modulator-control unit, Brake lights, Cruise control unit, ECM/PCM, Security horn relay, Security horn
BLU/RED	Horn
8	------	------	Not used
9	10A	WHT/RED	AVN unit (With Navigation), Audio unit (Without Navigation), Data link connector, Gauge assembly, Immobilizer control unit-receiver, Keyless receiver unit, Multiplex control unit, Security control unit
10	30A	WHT/RED	ABS modulator-control unit (+B MR)
11	20A	BLK/YEL	Noise condenser, Rear window defogger
12	40A	BLU/WHT	Blower motor
13	40A	WHT/BLK	No. 7, 22, 23, 24, 25 fuses (in the under-dash fuse/relay box)
14	40A	WHT/RED	No. 2, 3, 5, 15, 16 fuses (in the under-dash fuse/relay box)
15	15A	RED/YEL	Headlight washer control unit, High beam indicator light, Left headlight
16	20A	WHT	Multiplex control unit
17	15A	RED	Right headlight
18	30A	WHT/BLU	ABS modulator-control unit (+B FSR)
19	100A	------	Battery, Power distribution
20	50A	WHT	Ignition switch (BAT)

***Under-dash Fuse/Relay Box***
Fuse Number	Amps	Wire Color	Component(s) or Circuit(s) Protected
1	15A	BLK/WHT	Ignition coils
2	10A	GRN/WHT	Rear accessory power socket
3	10A	Fuse/relay box socket	Multiplex control unit (KG model: daytime running lights)
20A	BLU/RED	Front fog lights
4	10A	GRN/YEL	Alternator, Camshaft position (CMP) sensor, Cruise main switch, Cruise control unit, ELD unit, EVAP canister purge valve, Intake manifold runner control (IMRC) solenoid valve, Primary HO2S, Secondary HO2S, Vehicle speed sensor
5	7.5A	Fuse/relay box socket	Multiplex control unit (With rear fog light)
6	7.5A	YEL/GRN	Headlight adjuster switch, Headlight adjuster unit, Power window control unit, Power window relay, Sunroof open relay, Sunroof close relay
7	20A	GRN	Sunroof motor
8	7.5A	Fuse/relay box socket	Option connector, Multiplex control unit
YEL/RED	AVN unit (With Navigation), Audio unit (Without Navigation), Interlock control unit (KG model: daytime running lights), Key interlock solenoid, Key interlock relay, Shift lock solenoid
9	7.5A	RED/GRN	OPDS unit (With side airbag), Rear wiper control unit, Rear wiper motor, Rear window washer motor
10	7.5A	Fuse/relay box socket	Multiplex control unit
YEL	ABS modulator-control unit, A/T reverse relay, Back-up lights, Gauge assembly, Keyless receiver unit, Security control unit, Shift lock relay
11	------	------	Not used
12	7.5A	Fuse/relay box socket	Multiplex control unit (KG model: daytime running lights)
13	10A	PNK	SRS unit(VB)
14	10A	Fuse/relay box socket	Option connector
BLK/YEL	A/C compressor clutch relay, Blower motor relay, Condenser fan relay, Climate control unit (With auto A/C), Heater control panel (Without auto A/C), In-car temperature sensor assembly (LHD type with auto A/C), Power mirror actuator, Power mirror defogger, Radiator fan relay, Rear window defogger relay, Recirculation control motor
15	30A	RED/YEL	Headlight washer motor
16	20A	RED/BLK	Seat heaters
17	15A	BLK/YEL	ECM/PCM, Fuel pump, Inertia switch (KG, KR and KE models), SRS unit (VA)
18	15A	YEL/GRN	Cigarette lighter, Rear accessory power socket relay
19	7.5A	YEL/BLK	Turn signal/hazard relay
20	20A	Fuse/relay box socket	Multiplex control unit
GRN/BLK	Windshield wiper motor, Windshield washer motor
21	------	------	Not used
22	20A	GRN/BLK	Front passenger's power window motor
23	20A	GRN/WHT	Driver's power window motor
24	20A	YEL/RED	Left rear power window motor
25	20A	YEL/BLU	Right rear power window motor

1	UNDER-DASH FUSE/RELAY BOX	To page 22A-47
2	UNDER-DASH FUSE/RELAY BOX	To page 22A-49
3	UNDER-DASH FUSE/RELAY BOX	To page 22A-48
4	UNDER-DASH FUSE/RELAY BOX	To page 22A-50
5	UNDER-DASH FUSE/RELAY BOX	To page 22A-49
14	No.4 (10A) UNDER-DASH FUSE/RELAY BOX	From page 22A-45
A		To page 22A-43

6	UNDER-DASH FUSE/RELAY BOX	To page 22A-46
7	UNDER-DASH FUSE/RELAY BOX	To page 22A-47
8	UNDER-DASH FUSE/RELAY BOX	To page 22A-49
11	No.14 (10A) UNDER-DASH FUSE/RELAY BOX	From page 22A-45
B+C+D	To page 22A-44
A		From page 22A-42

9	UNDER-DASH FUSE/RELAY BOX	To page 22A-49
10	UNDER-DASH FUSE/RELAY BOX	To page 22A-45
B+C+D	From page 22A-43

10	No. 20 (50A) UNDER-HOOD FUSE/RELAY BOX	From page 22A-44
11	UNDER-HOOD FUSE/RELAY BOX	To page 22A-43
12 + 13	UNDER-DASH FUSE/RELAY BOX	To page 22A-47
14	ELD UNIT	To page 22A-42
A + B		To page 22A-46

6	No.13 (40A) UNDER-HOOD FUSE/RELAY BOX	From page 22A-43
A + B		From page 22A-45

12	IGNITION SWITCH (ACC)	From page 22A-45		7	No.14 (40A) UNDER-HOOD FUSE/RELAY BOX	From page 22A-43
13	IGNITION SWITCH (ST)	From page 22A-45		1	No. 7 (15A) UNDER-HOOD FUSE/RELAY BOX	From page 22A-42

3	No.2 (15A) UNDER-HOOD FUSE/RELAY BOX	From page 22A-42
4	No.3 (15A) UNDER-HOOD FUSE/RELAY BOX	From page 22A-42

5	No.9 (10A) UNDER-HOOD FUSE/RELAY BOX	From page 22A-42
6	HEADLIGHT RELAY 1, 2	From page 22A-43
9	No. 16 (20A) UNDER-HOOD FUSE/RELAY BOX	From page 22A-44
2	HORN RELAY	From page 22A-42
