Picture Diagnosis Test22B-20

Start-up procedure

  1. Turn the ignition switch ON (II), then press and hold the keys in this order: (1) Key 1, (2) Key 2, (3) Key 6, and keep them pressed simultaneously for 5 seconds.

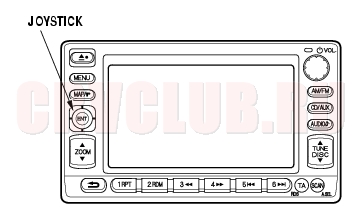

Operation keys

Joystick: Use for select the item

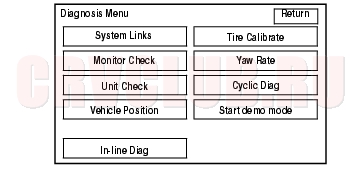

  1. After the display changes to the diagnosis menu screen, select the item you want to check, and the check will start. To return to previous screen, select ''Return'' on the diagnosis screen.
  2. When you quit picture diagnosis test, return to standard nevigation screen and then turn the ignition switch OFF. If you turn the ignition switch OFF when the diagnosis screen displayed, the system will not work.


Diagnosis items:

  • System Links
  • Tire Calibrate
  • Monitor Check
  • Yaw Rate
  • Unit Check
  • Cyclic Diag
  • Vehicle Position
  • Start demo mode
  • In-line Diag

    • Cyclic Diag

    This test is for manufacturer's use only. In this test, the system checks the following items repeatedly:

  • AVN unit check
  • Monitor check

    • To exit this test, press the cancel key.

    Vehicle Position

    When moving the vehicle with the engine stopped such as ferry or tow truck and vehicle positioning error occured, you can adjust the vehicle position using the joystick.

    Start demo mode

    This test is for manufacturer's use only. If the indication of this item is changed to ''Stop demo mode'', select this item once and make sure the indication changes to ''Start demo mode''.

    In-line Diag

    This test is for manufacturer's use only. In this test, the system checks the following items:

  • System Links
  • Car status
  • Yaw Rate

    • 22B-21

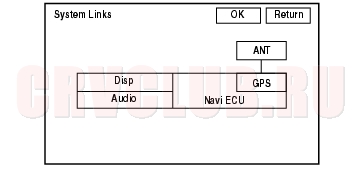

    System Links

  • If the system is OK, all of the communication lines connecting the components color will not change, the screen will indicate ''OK'', and a tone will sound.
  • If there is a problem in the system, the faulty components will change to red, the screen will indicate ''NG'', and tone will sound.
  • If the ''GPS'' is in red and the screen indicates ''NG'', check the GPS communication line. If the line is OK, replace the GPS antenna.
  • If the component exept ''GPS'' is in red and the screen indicates ''NG'', replace the AVN unit.

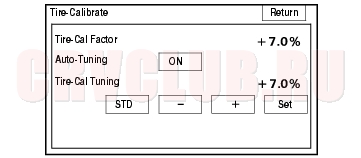

    • Tire Calibrate

  • The ''Auto-Tuning'' is factory-set to ''ON'', and it should remain ON. If you find it has been turned OFF, turn it back ON.
  • The ''Tire-Cal Tuning'' can be used, but it is not recommended. The ''AUTO TUNING'' fanction keeps the system in better tune.

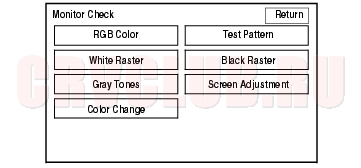

    • Monitor Check

    Select the item you want to check, and the check starts.

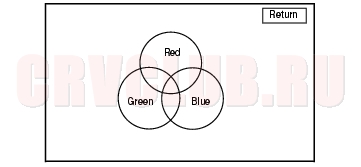

    RGB Color

    The three primary colors of red, green and blue must be shown.

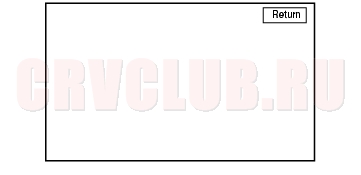

    White Raster

    The entire display must be in white.


    Picture Diagnosis Test (cont'd)22B-22

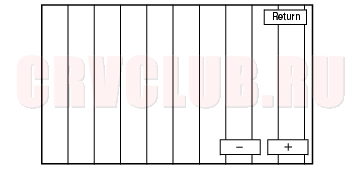

    Gray Tones

    The gray tone level must be changed smoothly in holyzontal direction. If you want to change the contrast of the screen, select ''+'' or ''-''.

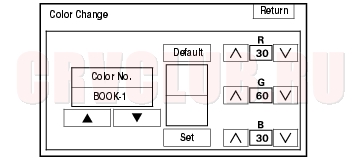

    Color Change

    This screen is for manufacturer's only.

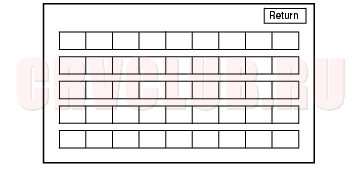

    Test Pattern

    The system color palette must be indicated.

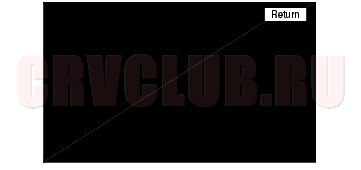

    Black Raster

    The entire display must be shown in black.

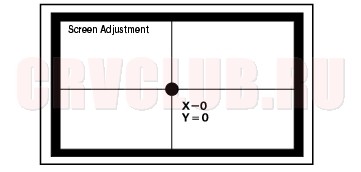

    Screen Adjustment

    In this screen, you can adjust the screen position in the display. Use the joystick to adjust the screen position.


    22B-23

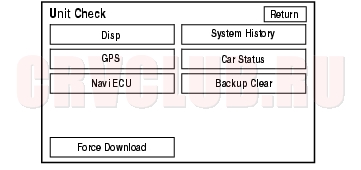

    Unit Check

    Select the item you want to check, and the check starts.


    NOTE: Do not use ''Backup Clear'' and ''Force Download''. These commands are for the manufacturer's use only.

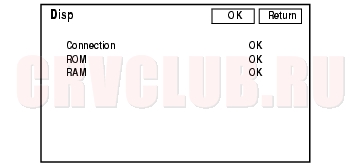

    Disp

    When any item is ''NG'', replace the AVN unit.

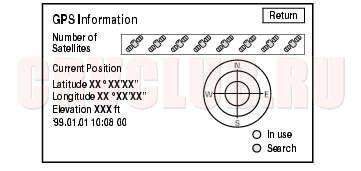

    GPS

    This screen shows the condition of the GPS reception and the vehicle position.

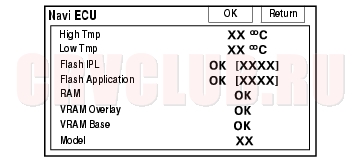

    Navi ECU

    When any item is ''NG'', replace the AVN unit.

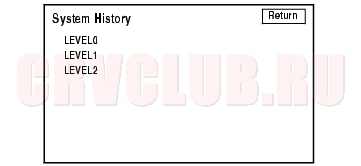

    System History

    This screen is for manufacturer's use only.


    Picture Diagnosis Test (cont'd)22B-24

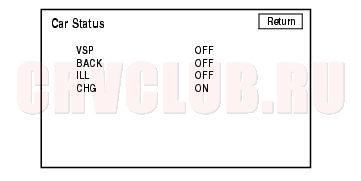

    Car Status

    Use the car status screen to check each signal.

    If the indication does not match the actual vehicle status, check the applicable signal line.

  • ''VSP'' (vehicle speed pulse indication)
  • ''OFF'' when vehicle is not moving
  • ''ON'' when vehicle is moving
  • ''BACK'' (reverse indication)
  • ''OFF'' when shift lever is in any position other than reverse
  • ''ON'' when shift lever is in reverse
  • ''ILL'' (illumination indication)
  • ''OFF'' when parking lights or headlights are off
  • ''ON'' when parking lights or headlights are on
  • ''CHG'' (charging indication)
  • ''ON'' when engine is running and alternator is charging
  • ''OFF'' when engine is off or alternator is not charging

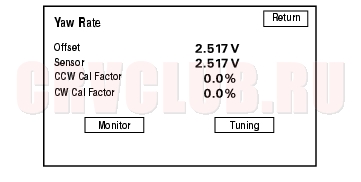

    • Yaw Rate

    ''SENSOR'' indicator the voltage output from the yaw rate sensor. It should indicate 1,500 to 3,500 V with the vehicle stopped.

    NOTE: Do not try to tune the yaw rate sensor unless instructed by Honda Motor Europe.
