Rear Differential15-1 Oil Seal Replacement15-16

Oil Seal Replacement15-16

Special Tools Required

Driver 07749-0010000

Attachment, 78 x 80 mm 07NAD-PX40100

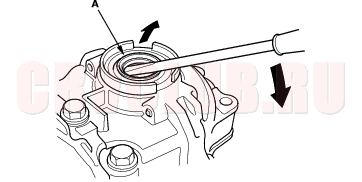

1. Remove the oil seals (A) from the differential housing.


   NOTE: Be careful not to damage the differential carrier while prying out the seals.

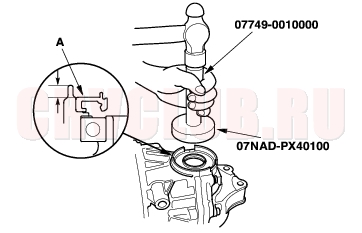

2. Install the oil seals (A) squarely using the special tools. Be careful not to damage the lip of the oil seals.


Right side: Installation depth of the oil seal is 9 mm (0.35 in.) below the edge of the differential carrier assembly.

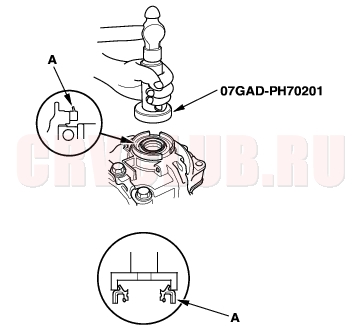

Left side: Install the oil seal (A) flush with the edge of the differential carrier assembly.

15-17

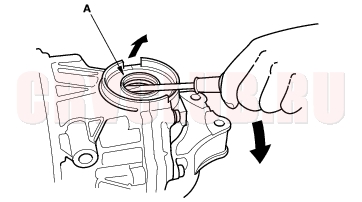

3. Remove the oil seal (A) from the torque control differential case (B).


   NOTE: Be careful not to damage the shaft or case while prying out the seal.

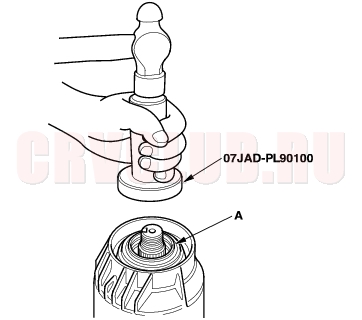

4. Install the oil seal (A) squarely using the special tool. Be careful not to damage the lip of the oil seal.
